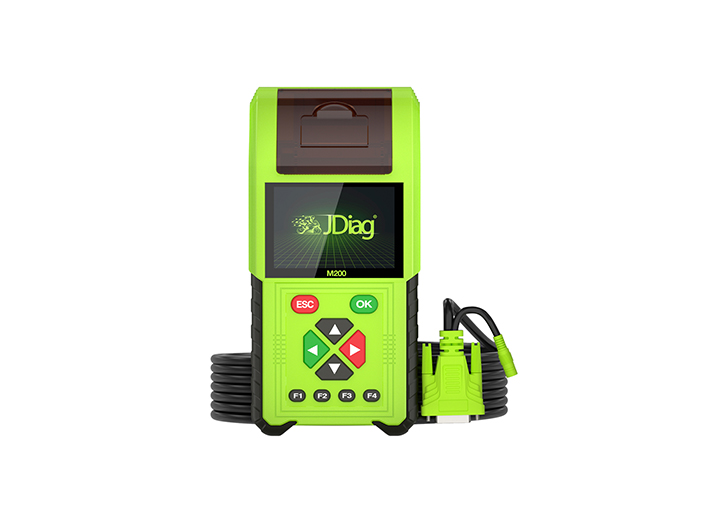

JDiag M200 best motorcycle obd 2 scanner 2023 NEWEST

How can the M200's new upgraded features help with motorcycle repair?

JDiag M200 motorcycle obd 2 scanner Injector Functions

Injector Testing

The injector test function on a motorcycle diagnostic tool JDiag M200 is used to test problems with the fuel injection system of a motorcycle. Injectors must transport moderate fuel to the engine at the right time and pressure, this can ensure optimal performance and fuel efficiency.

Injector failure can lead to poor fuel economy, loss of power, erratic idling, and even engine damage. The M200's injection test can simulate injector operation and monitor injector performance.

Injector testing detects that it is transporting fuel at the normal pressure, receiving the proper voltage and opening properly. This can help identify problems with faulty or clogged fuel lines, as well as electrical connections or the control module that controls injector operation.

Injector Signal Detection

The JDIag M200's injector signal detection function through detecting the signals that control the opening and closing of injectors, confirm that it is working properly. Then the JDiag M200 can provide important pieces of information about Fuel Conveying, Ignition Timing, and Engine Performance to diagnose problems such as Engine Misfires or Poor Fuel Economy and optimize its performance.

Cleaning motorcycle injectors

Improve fuel efficiency: Dirty or clogged injectors can lead to reduced fuel efficiency, which means increased fuel consumption and higher costs at the pump. Cleaning injectors can help restore optimal fuel efficiency.

Prevent engine damage: When the injector is dirty or clogged, it cannot inject fuel evenly or at the correct pressure, which will lead to incomplete combustion and damage to the engine over time. Regular fuel injector cleaning can avoid paying for expensive engine repairs.

Improves performance: Dirty fuel injectors can cause a decrease in engine performance, including reduced power output and slower acceleration. By cleaning the fuel injectors, you can restore the smooth and efficient operation of your motorcycle's engine.

motorcycle obd 2 scanner JDiag M200' Relay test

Relay Testing

The Motorcycle scanner Relay Test is a specific diagnostic test that is used to determine the functionality of relays in a motorcycle's electrical system. Relays help control various electrical circuits such as lighting, ignition, and charging systems.

 The JDiag M200 scanner will send a signal to the relay through Relay Test box and then monitor the reactio to determine if the relay is working properly. If the relay fails the test, the scanner will generate an error code or signal. When a relay fails, it will cause issues with difficulty starting the engine or problems with the headlights or turn signals.

Relay testing using a motorcycle scanner can help identify issues with relays before they cause problems while ridings, such as electrical faults, breakdowns, or other malfunctions. This can help prevent accidents and save costs on repairs.

The best motorcycle obd 2 scanner's signal simulator function provides a way to test the performance of various sensors and components in a motorcycle's electronic system without having to start or run the bike. The signal simulator can generate electrical signals that emulate those produced by different sensors, such as the throttle position sensor, oxygen sensor, or engine temperature sensor, the technicians to test the response of the electronic control module (ECM) and other components to these signals.

Using the signal simulator function, technicians can quickly identify faulty sensors or wiring, diagnose problems with the ECM, and troubleshoot other issues related to the motorcycle's electronic systems. This helps to reduce diagnostic time and increase accuracy, enhance more efficient repairs and improved total performance of the motorcycle.

motorcycle obd 2 scanner M200's Signal Simulator

Crankshaft Signal

The JDiag M200 motorcycle scanner's crankshaft signal function is used to monitor the rotational speed and position of the engine crankshaft.

This information is important for the proper operation management system of the engine, which relies on the timing of fuel combustion precisely to optimize performance and improve fuel efficiency.

In addition to monitoring engine timing, the crankshaft signal can also be used to diagnose engine problems. For example, a missing tooth or inconsistent signal from the crankshaft position sensor could indicate a problem with the sensor itself or with the timing belt or chain. By analyzing the signal, a mechanic or technician can identify the source of the problem and make any necessary repairs.

PWM Signals

The Scanner M200 PWM (Pulse Width Modulation) signal function controls the current flow to specific electrical components in the motorcycle. This function can adjust the brightness of the headlight, tail light, and other lighting fixtures on the bike.

PWM works by rapidly turning the current on and off at a specific frequency, creating the effect of a variable voltage level. By adjusting the "duty cycle" or the amount of time the current is on versus off during each pulse cycle, the average voltage can be adjusted, which in turn controls the brightness of the connected lights.

In addition to controlling lighting, PWM signals are used to adjust the speed of the motorcycle's engine cooling fan, which helps regulate engine temperature during operation. the PWM signal function is an important tool for regulating the performance and functionality of the motorcycle.

Injector Signal

The injector signal function of the obd motorcycle scanner can diagnose the injector system problems. With it the scanner reads the signals sent by the fuel injectors to the ECU (Engine Control Unit) and analyzes the injector signals, the motorcycle scanner can detect blocked injectors, faulty wiring or connectors, and fuel pump problems and determine if they are operating correctly.

Ignition signal

The ignition signal function can diagnose issues related to the motorcycle's ignition system. When the ignition signal is activated, the scanner M200 will read data from the motorcycle's ignition system and help mechanics and riders identify problems with the ignition system, such as faulty spark plugs, malfunctioning ignition coils, or issues with the timing of the ignition system.

By identifying these issues early, it is possible to reduce the risk of more serious damage occurring and save money on repairs in a long time. Additionally, performing regular checks using a motorcycle scanner can help ensure that the bike is running smoothly and safely.
